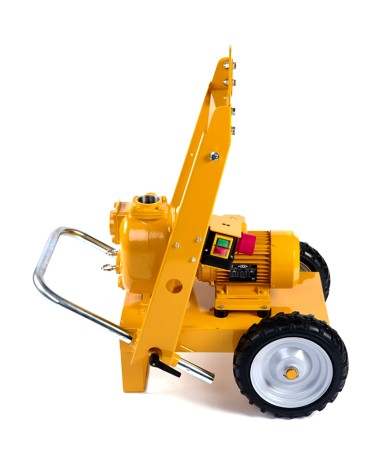

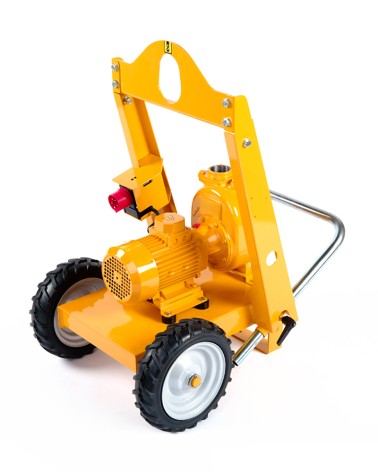

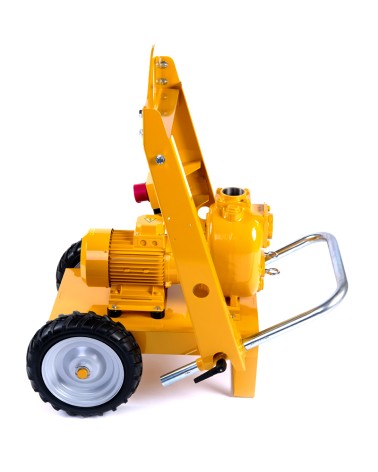

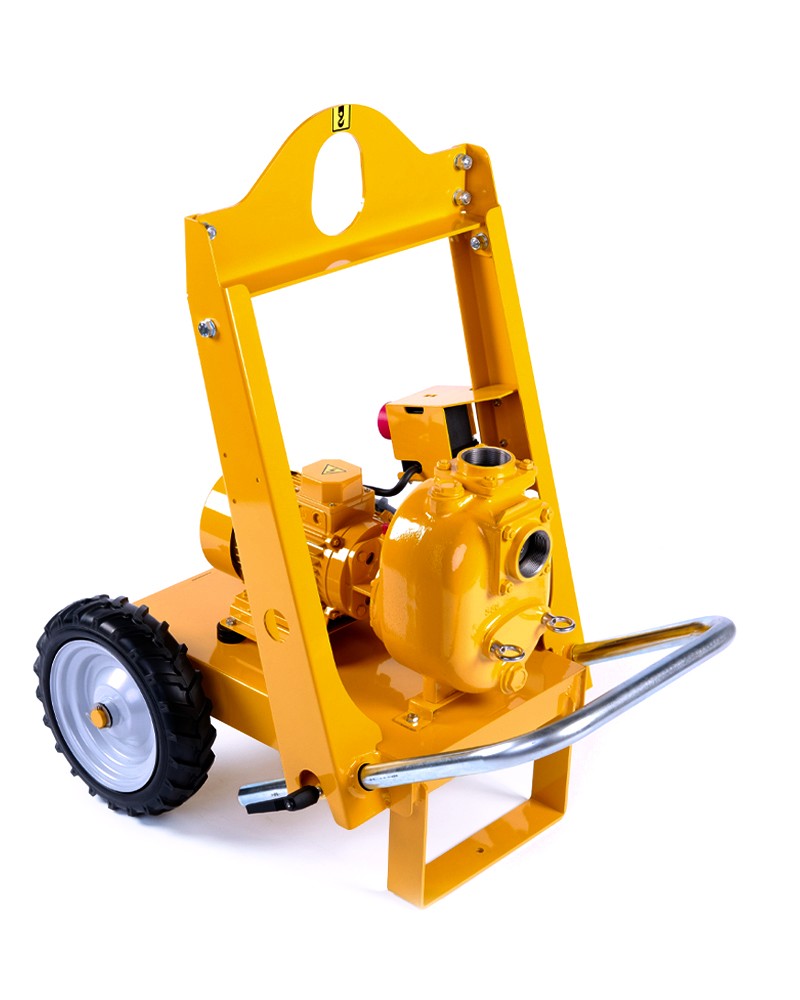

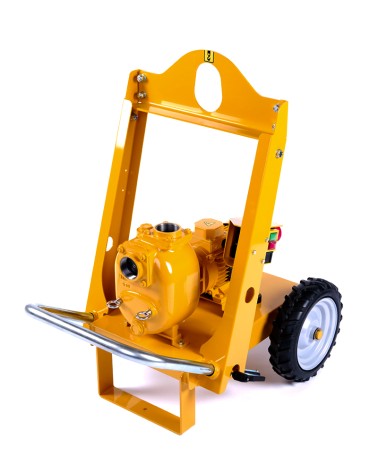

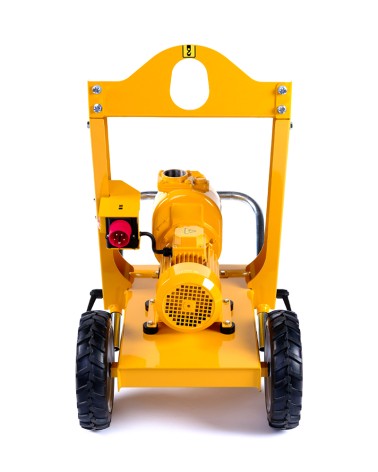

2” Self-priming centrifugal pump in cast iron with mechanical seal, grease-lubricated, non return valve and 2,2 kW electric motor close coupled, mounted on trolley with lifting hook and rubber wheels.

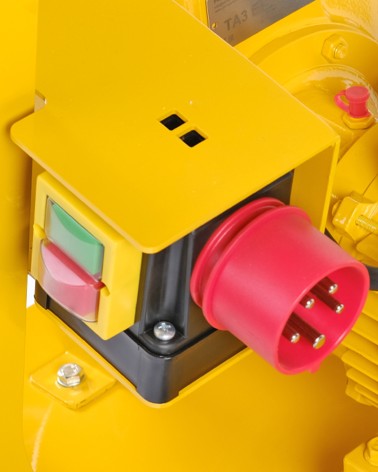

Equipped with control-panel with On/Off switch with 7 Amp termistors, IEC plug 5 Pin 16 Amp with phase inverter
S 50 G31T+TQ
X25199
2” Self-priming centrifugal pump in cast iron with mechanical seal, grease-lubricated, non return valve and 2,2 kW electric motor close coupled, mounted on trolley with lifting hook and rubber wheels.
Equipped with control-panel with On/Off switch with 7 Amp termistors, IEC plug 5 Pin 16 Amp with phase inverter
X25199
Specifications
Main Features |
|
|---|---|
| Pump series | S 50 |

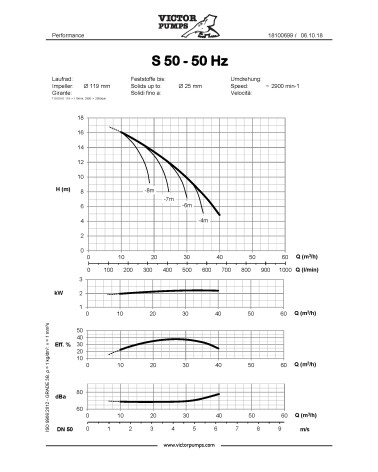

| Pump Flow Rate | max 40 m³/h (655 l/min) |
| Pump head with 50 Hz grid frequency | max 15 m |
| Max. Solids Handling | 25 mm |
| Self-priming | ★★★☆☆ |
| Heavy-duty | ★★★★☆ |
| Construction | Mobile Pumps |
| Frame | Single-axle trolley |
Frame |
|
|---|---|
| Type of Tyre | 8" rubber wheel with Tractor Profile |
| Suitable for solid ground | Yes |
| Suitable for muddy and sandy terrains | Yes |

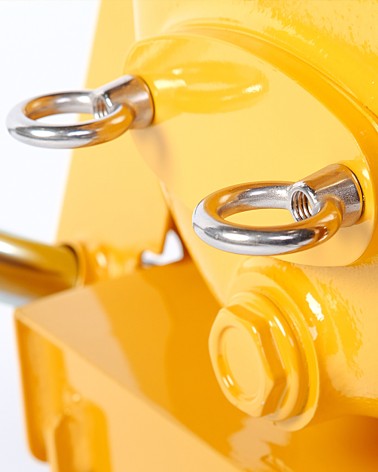

| Lifting hook | Yes |
| Can be moved by hand | Yes |
| Can be towed with a vehicle | Yes |
| Towing bar with hook | No |
Pump |
|
|---|---|
| Type of Pump | Self-priming centrifugal pump |
| Pump manufacturer | Victor Pumps |
| Suction port | 2'' |
| Discharge port | 2'' |
| Type of ports | Female Thread BSP |
| Type of self-priming | Wet-prime |
| Inspection cover for the impeller | Yes |
| Filling port | Yes |
| Drain Port | Yes |
| Plug for Vacumeter | No |
| Plug for the Manometer | No |
| Material of casing | Cast iron |
| Material of impeller | Cast iron |
| Material of wear plate | Steel |
| Material of shaft | Stainless steel AISI316 |
| Material of non-return valve | NBR (Nitrile) |
| Shaft sealing | YCV Mechanical Seal with Grease Lubrication in SiC/SiO₂/FKM (Viton®) on Stainless Steel Sleeve |
Drive |
|
|---|---|
| Type of drive unit | Three-Phase Electric Motor |
| Drive Manufacturer | Victor Pumps |
| Efficiency class | IE2, S6-75% |
| Rated Power | 2, 2 kW |
| Maximal Rotation | 2900 rpm (50 Hz) |
| Rated voltage | 400 V ±10% @ 50 Hz, 230 V ±10% @ 50 Hz |
| Protection | 7 Amp (380-480 V), 10 Amp (220-277 V) |
| Cooling method | IC411- TEFC |
| Protection degree | IP55 |
| Insulation class | F |
Performance data |
|
|---|---|
| Typical application | waste water with solids in suspension, non-corrosive |
| Product temperature | max. 60 °C |
| Ambient temperature | max. 40 °C |
| Density | up to 1, 1 kg/dm³, for higher values you need an oversized motor |
| Viscosity | up to 30 mm²s (cSt), for higher values you need an oversized motor |
| Max vacuum with water | max 8 m (9, 5 m for 10 min) |
| Max vacuum with air | max 8, 5 m |
Additional Features |
|
|---|---|
| Coupling | One shaft solution without any coupling |
| Plug | IEC 16 Amp, 5 Pin with Phase inversion |
| Paint | RAL1006 maize yellow |

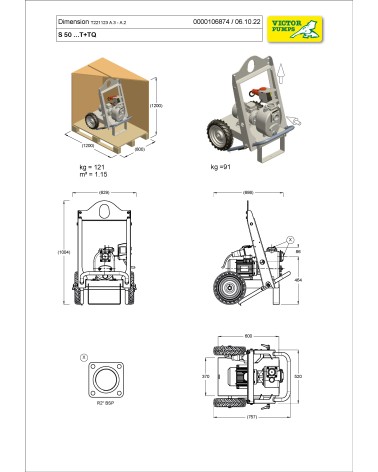

| External Dimensions (L x W x H) | see dimensions |
| Net Weight | see dimensions |
Spare parts
Accessories
There are no accessories associated with this productRelated Products ( 0 other products in the same category )
Subject to errors and changes
