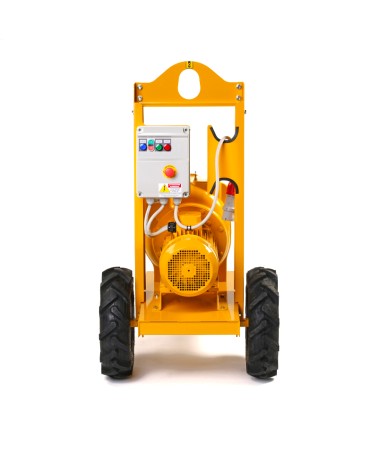

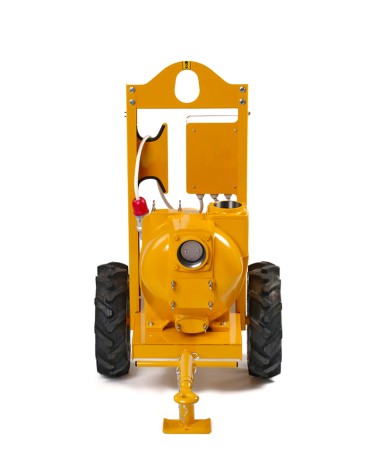

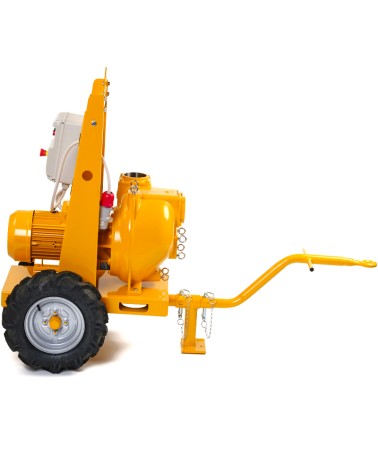

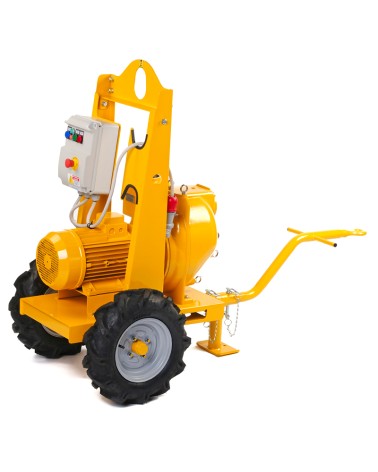

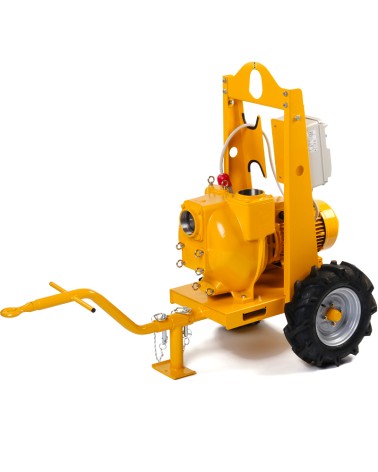

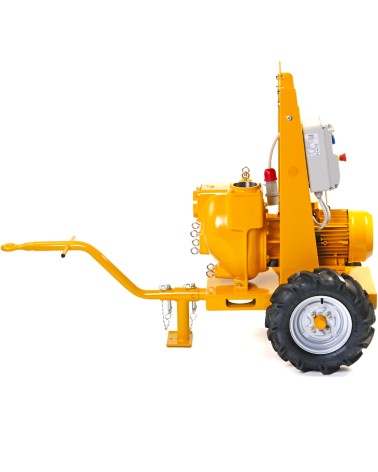

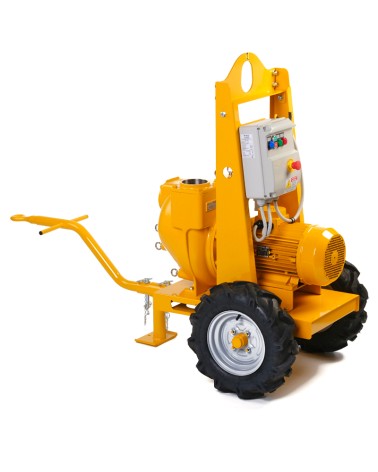

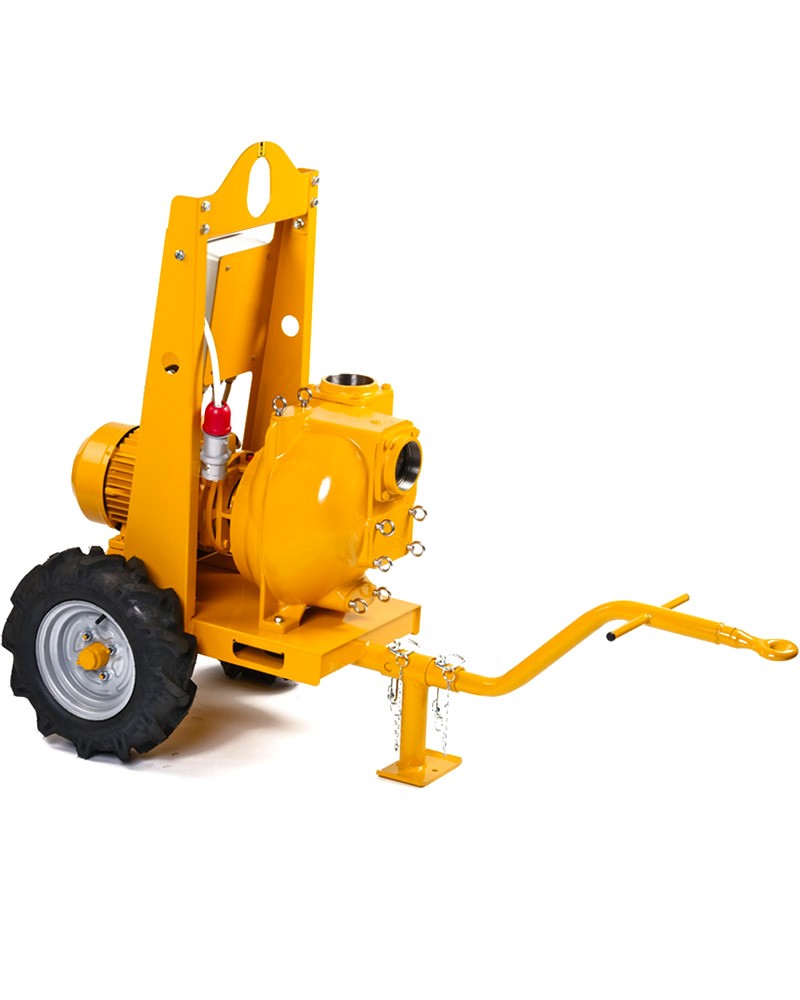

4” Self-priming centrifugal pump in cast iron with mechanical seal, grease-lubricated, non return valve and 11 kW electric motor close coupled mounted on trailer with towing eye, lifting hook and tyres

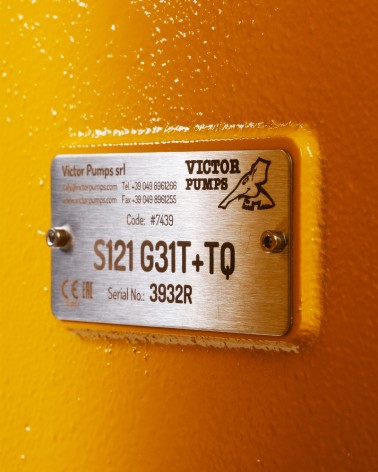

S121 G31T+TQ
#7439
4” Self-priming centrifugal pump in cast iron with mechanical seal, grease-lubricated, non return valve and 11 kW electric motor close coupled mounted on trailer with towing eye, lifting hook and tyres
#7439
Specifications
Main Features |
|
|---|---|
| Pump series | S121 |
| Pump Flow Rate | max 180 m³/h (3000 l/min) |
| Pump head with 50 Hz grid frequency | max 24 m |
| Max. Solids Handling | 45 mm |
| Self-priming | ★★★★★ |
| Heavy-duty | ★★★★☆ |
| Construction | Mobile Pumps |
| Frame | Single-axle Trailer |
Frame |
|
|---|---|
| Type of Tyre | 10" Tyres with Tractor Profile |
| Suitable for solid ground | Yes |
| Suitable for muddy and sandy terrains | Yes |
| Lifting hook | Yes |
| Can be moved by hand | Yes |
| Can be towed with a vehicle | Yes |
| Towing bar with hook | Yes |
| Document box prepared for lock | Yes |
| Tool box prepared for lock | No |
Pump |
|
|---|---|
| Type of Pump | Self-priming centrifugal pump |
| Pump manufacturer | Victor Pumps |

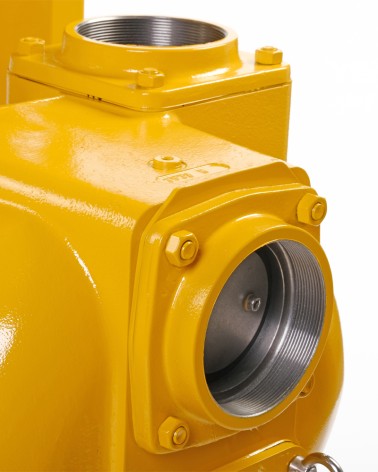

| Suction port | 4" |
| Discharge port | 4" |
| Type of ports | Female Thread BSP |
| Type of self-priming | Wet-prime |
| Vaccum pump | No |

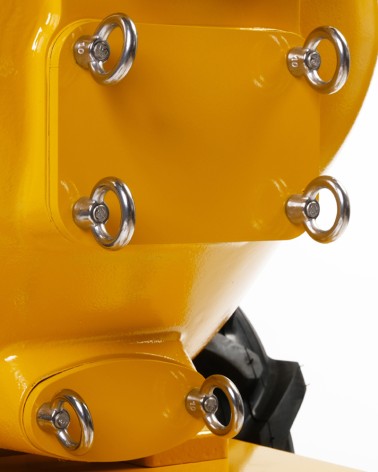

| Inspection cover for the impeller | Yes |
| Filling port | Yes |
| Drain Port | Yes |
| Plug for Vacumeter | Option |
| Plug for the Manometer | Option |
| Material of casing | Cast iron |
| Material of impeller | Ductile Cast-iron |
| Material of wear plate | Steel |
| Material of shaft | Stainless steel AISI420 |
| Material of non-return valve | NBR (Nitrile) |
| Shaft sealing | YCV Mechanical Seal with Grease Lubrication in SiC/SiO₂/FKM (Viton®) on Stainless Steel Sleeve |
Drive |
|
|---|---|
| Type of drive unit | Three-Phase Electric Motor |
| Drive Manufacturer | Victor Pumps |
| Efficiency class | IE1, S6-75% |
| Rated Power | 11 kW |
| Maximal Rotation | 1450 rpm (50 Hz) |
| Rated voltage | 400 V ±10% @ 50 Hz, 690 V ±10% @ 50 Hz |
| Protection | 26 Amp (380-480 V), 16 Amp (660-725 V) |
| Cooling method | IC411- TEFC |
| Protection degree | IP55 |
| Insulation class | F |

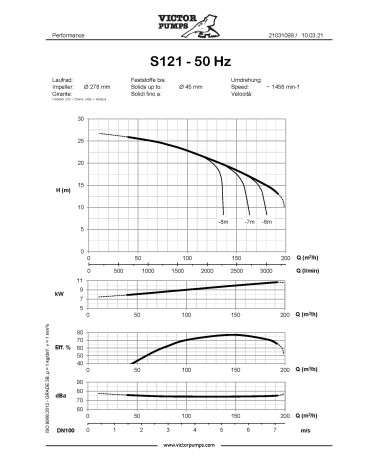

Performance data |
|
|---|---|
| Typical application | waste water with solids in suspension, non-corrosive |
| Product temperature | max. 60 °C |
| Ambient temperature | max. 40 °C |
| Density | up to 1, 1 kg/dm³, for higher values you need an oversized motor |
| Viscosity | up to 30 mm²s (cSt), for higher values you need an oversized motor |
| Max vacuum with water | max 8 m (9, 5 m for 10 min) |
| Max vacuum with air | max 8, 5 m |
Additional Features |
|
|---|---|
| Coupling | One shaft solution without any coupling |

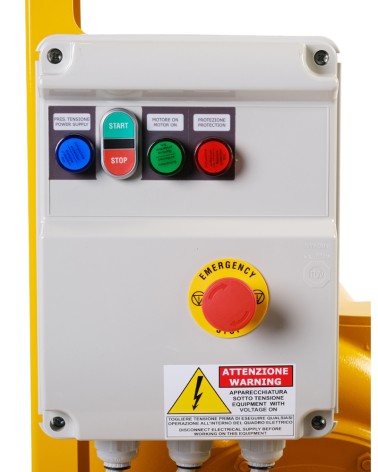

| Switchboard | Yes |
| Indicators on the panel | Mains Voltage, Pump ON, Overload |

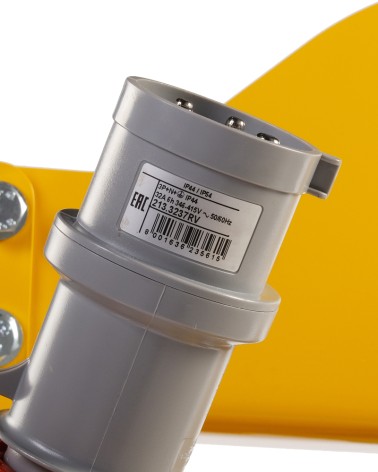

| Plug | IEC 32 Amp, 5 Pin with Phase inversion |

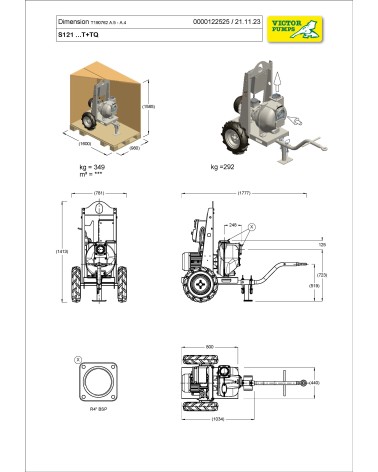

| External Dimensions (L x W x H) | see dimensions |
| Net Weight | see dimensions |
Spare parts
There are no spare parts associated with this productAccessories
There are no accessories associated with this productRelated Products ( 0 other products in the same category )
Subject to errors and changes
