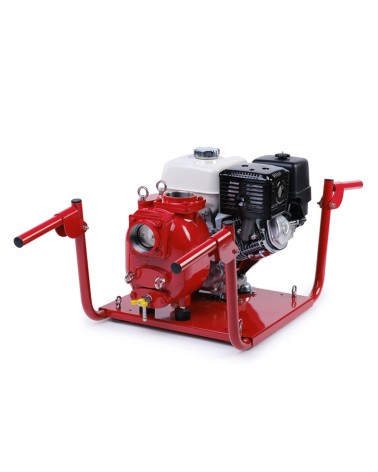

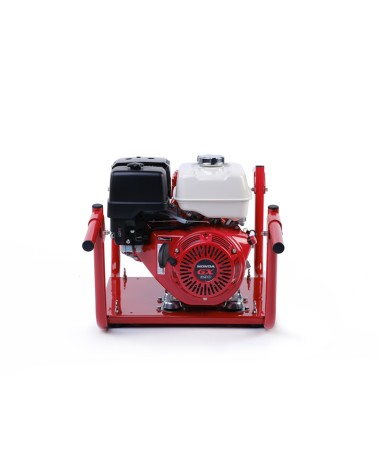

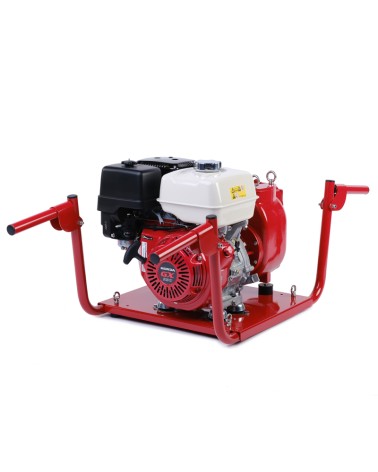

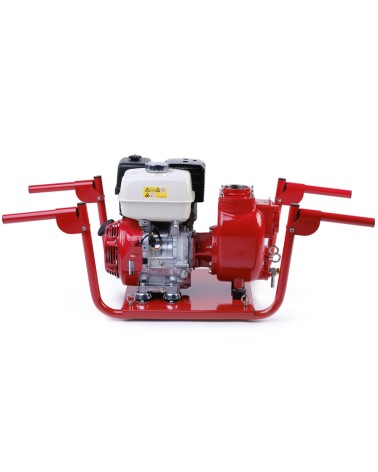

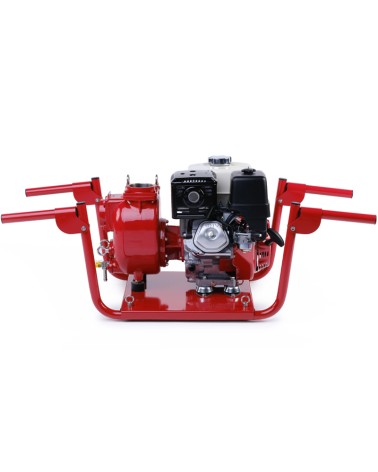

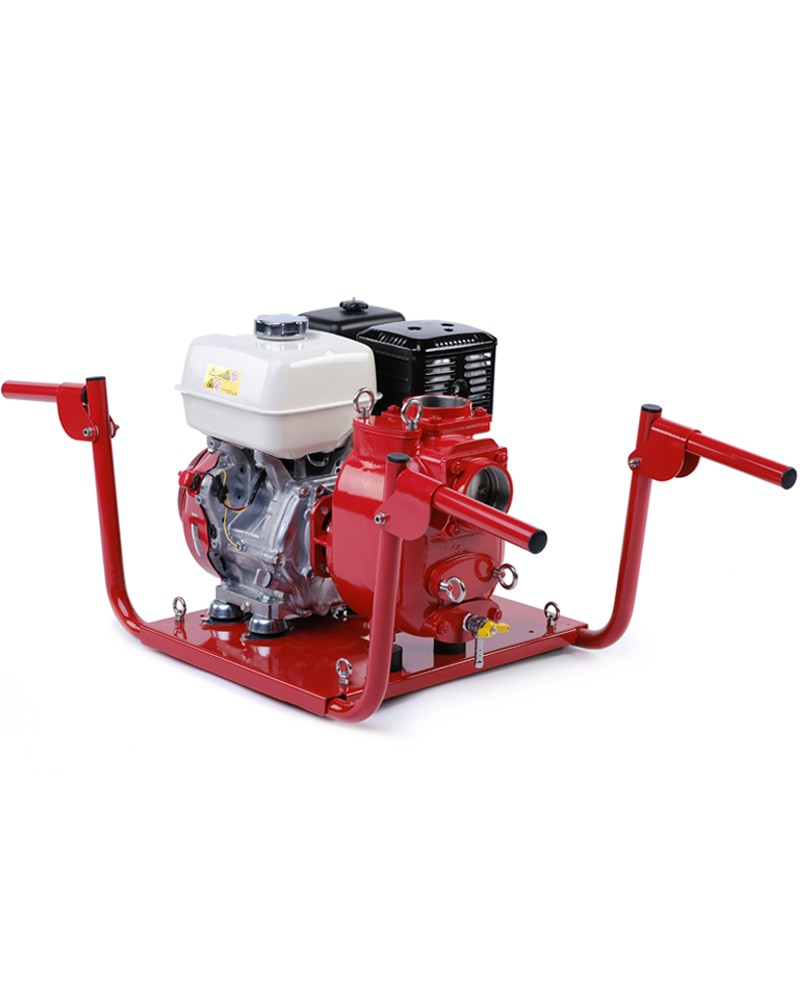

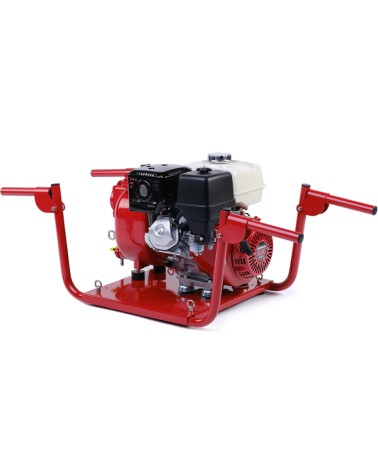

3” Self-priming centrifugal pump in cast iron with mechanical seal, grease-lubricated, non return valve and 8,7 kW gasoline engine, mounted on carrying frame for 2 people.
S 81+50 A30Q+G
30549.01
3” Self-priming centrifugal pump in cast iron with mechanical seal, grease-lubricated, non return valve and 8,7 kW gasoline engine, mounted on carrying frame for 2 people.
30549.01
Specifications
Main Features |
|
|---|---|
| Pump series | S 81+50 |
| Pump Flow Rate | max 95 m³/h (1580 l/min) |
| Pump head with 50 Hz grid frequency | max 35 m |
| Max. Solids Handling | 36 mm |
| Self-priming | ★★★★☆ |
| Heavy-duty | ★★☆☆☆ |
| Construction | Mobile Pumps |
| Frame | Carring frame for 2 persons |
| Suitable for the EU sales area | Yes |
| Suitable for the US sales area | No |
| Suitable for non regulated sales areas | Yes |
Frame |
|
|---|---|
| Can be moved by hand | Yes |
| Can be towed with a vehicle | No |
| Towing bar with hook | No |
| Document box prepared for lock | No |
| Tool box prepared for lock | No |
| Tank on engine | Yes |
| Tank integrated in frame | No |
| Tank Capacity | 6, 1 l |
Pump |
|
|---|---|
| Type of Pump | Self-priming centrifugal pump |
| Pump manufacturer | Victor Pumps |
| Suction port | 3" |
| Discharge port | 3" |
| Type of ports | Female Thread BSP |
| Type of self-priming | Wet-prime |
| Vaccum pump | No |
| Inspection cover for the impeller | Yes |
| Filling port | Yes |
| Drain Port | Yes |
| Plug for Vacumeter | No |
| Plug for the Manometer | No |
| Material of casing | Aluminum |
| Material of impeller | Stainless steel |
| Material of wear plate | Steel |
| Material of non-return valve | NBR (Nitrile) |
| Shaft sealing | GYV Graphite/Silicon carbide/FKM |
Drive |
|
|---|---|
| Type of drive unit | Gasoline engine |
| Drive Manufacturer | Honda |
| Drive code | GX390 |
| Exhaust gas regulation | Stage V |
| Manual Start | Yes |
| Electric start | No |
| No. of Cylinder | 1 |
| Strokes | 4-stroke |
| Displacement | 389 cm³ |
| Rated Power | 8, 7 kW (11.7 HP) |
| Maximal Rotation | 3600 rpm |
| Cooling | Air cooled |

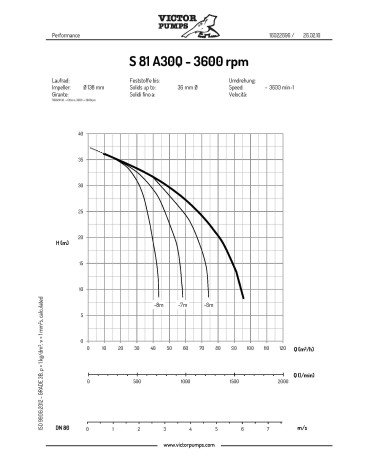

Performance data |
|
|---|---|
| Typical application | waste water with solids in suspension, non-corrosive |
| Product temperature | max. 60 °C |
| Ambient temperature | max. 40 °C |
| Density | up to 1, 1 kg/dm³, for higher values you need an oversized motor |
| Viscosity | up to 5 mm²s (cSt), for higher values you need an oversized motor |
| Max vacuum with water | max 8 m (9, 5 m for 10 min) |
| Max vacuum with air | max 8, 5 m |
Additional Features |
|
|---|---|
| Coupling | One shaft solution without any coupling |
| Switchboard | No |
| Paint | RAL3003 ruby red |

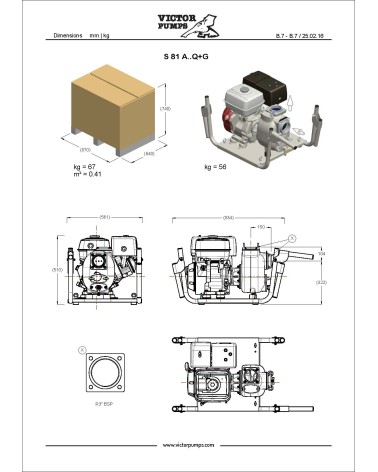

| External Dimensions (L x W x H) | see dimensions |
| Net Weight | see dimensions |
Spare parts
There are no spare parts associated with this productAccessories
There are no accessories associated with this productRelated Products ( 0 other products in the same category )
Subject to errors and changes
