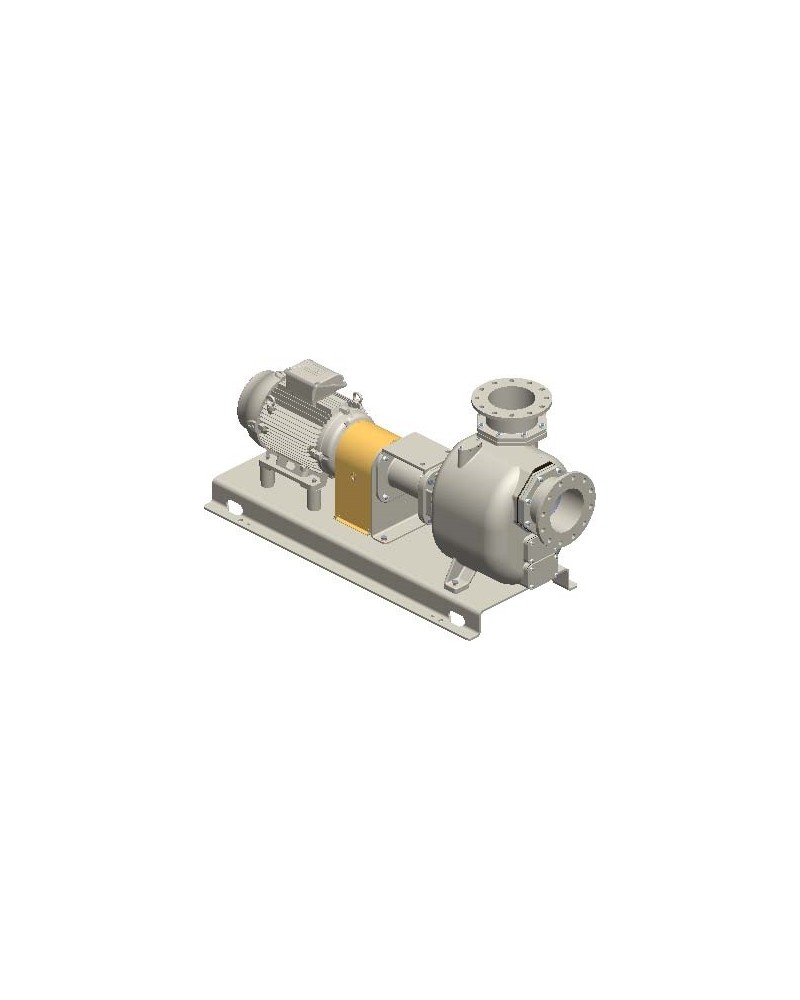

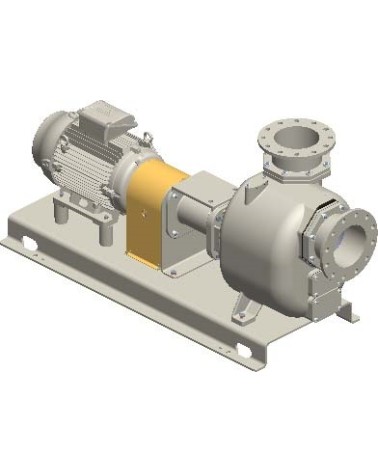

8” Self-priming centrifugal pump in cast iron with mechanical seal, grease-lubricated, non return valve and 22 kW electric motor, on baseplate with coupling and guard.
+F flange coupling according DIN. PN16
S201+50 G31B+F/T
35532.42
8” Self-priming centrifugal pump in cast iron with mechanical seal, grease-lubricated, non return valve and 22 kW electric motor, on baseplate with coupling and guard.
+F flange coupling according DIN. PN16
35532.42
Specifications
Main Features |
|
|---|---|
| Pump series | S201+50 |
| Pump Flow Rate | max 340 m³/h (5667 l/min) |
| Pump head with 50 Hz grid frequency | max 20 m |
| Max. Solids Handling | 57 mm |
| Self-priming | ★★★★★ |
| Heavy-duty | ★★★☆☆ |
| Construction | Classic |
Pump |
|
|---|---|
| Type of Pump | Self-priming centrifugal pump |
| Suction port | DN200 |
| Discharge port | DN200 |
| Type of ports | DIN PN16 flange (compatible), ANSI 150lb flange |
| Inspection cover for the impeller | Yes |
| Filling port | Yes |
| Drain Port | Yes |
| Plug for Vacumeter | Option |
| Plug for the Manometer | Option |
| Material of casing | Cast iron |
| Material of impeller | Ductile Cast-iron |
| Material of wear plate | Steel |
| Material of shaft | Stainless steel AISI420 |
| Material of non-return valve | NBR (Nitrile) |
| Shaft sealing | YCV Mechanical Seal with Grease Lubrication in SiC/SiO₂/FKM (Viton®) on Stainless Steel Sleeve AISI420 |
Drive |
|
|---|---|
| Type of drive unit | Three-Phase Electric Motor |
| Drive Manufacturer | WEG |
| Efficiency class | IE3 |
| Rated Power | 22 kW |
| Maximal Rotation | 1478 rpm (50 Hz) |
| Rated voltage | 400 V ±10% @ 50 Hz, 690 V ±10% @ 50 Hz |
| Protection | 41 Amp (380-480 V), 23, 8 Amp (660-725 V) |
| Mounting | B3 |
| Frame | IEC 180L |
| Cooling method | IC411- TEFC |
| Protection degree | IP55 |
| Insulation class | F |

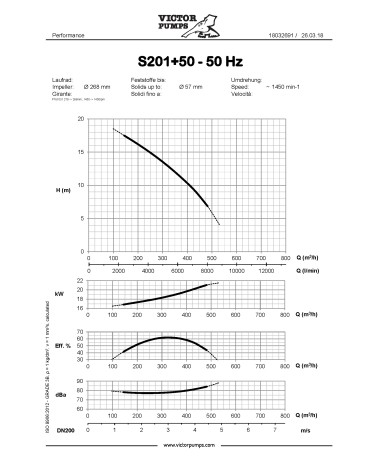

Performance data |
|
|---|---|
| Typical application | waste water with solids in suspension, non-corrosive |
| Product temperature | max. 90 °C |
| Ambient temperature | max. 40 °C |
| Density | up to 1, 1 kg/dm³, for higher values you need an oversized motor |
| Viscosity | up to 20 mm²s (cSt), for higher values you need an oversized motor |
| Max vacuum with water | max 8 m (9, 5 m for 10 min) |
| Max vacuum with air | max 6 m |
Additional Features |
|
|---|---|
| Setup position | Horizontal |
| Coupling | Elastic coupling with steel coupling guard |
| Arrangement | Steel base plate |
| Paint | RAL6011 Reseda green |

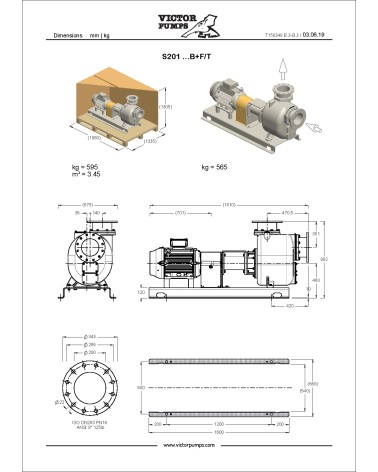

| External Dimensions (L x W x H) | see dimensions |
| Net Weight | see dimensions |
