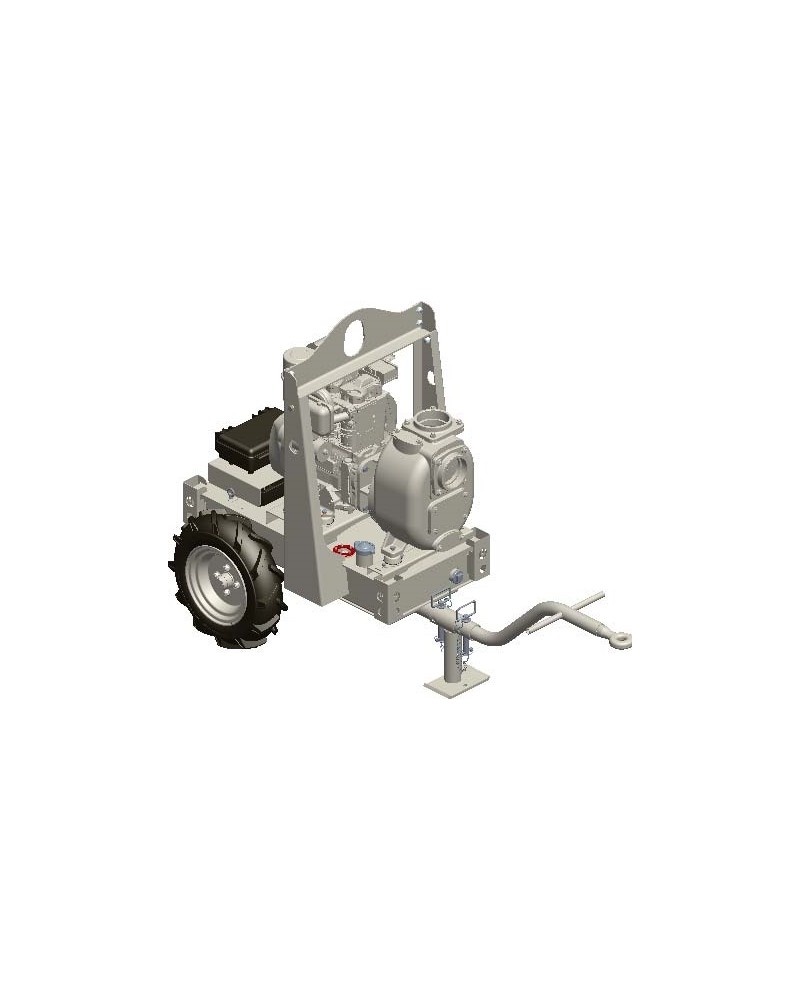

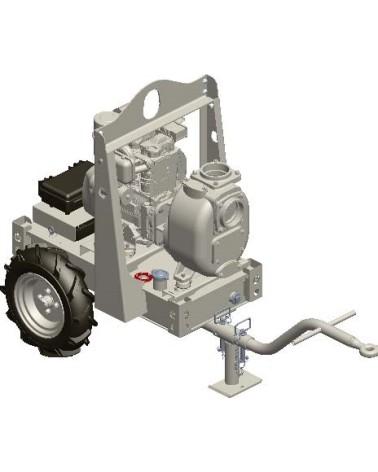

4” Self-priming centrifugal pump in cast iron with mechanical seal, grease-lubricated, non return valve and Diesel engine, mounted on trailer with integrated tank, towing eye, lifting hook and tyres.
S100-3 G12ZH+TSB4510
X16824
4” Self-priming centrifugal pump in cast iron with mechanical seal, grease-lubricated, non return valve and Diesel engine, mounted on trailer with integrated tank, towing eye, lifting hook and tyres.
X16824
Specifications
Main Features |
|
|---|---|
| Pump series | S100 |
| Pump Flow Rate | max 155 m³/h (2583 l/min) |
| Pump head with 50 Hz grid frequency | max 27 m |
| Max. Solids Handling | 37 mm |
| Self-priming | ★★★☆☆ |
| Heavy-duty | ★★★☆☆ |
| Construction | Mobile Pumps |
| Frame | Frame with integrated tank |
| Suitable for the EU sales area | Yes |
| Suitable for the US sales area | No |
| Suitable for non regulated sales areas | Yes |
Frame |
|
|---|---|
| Type of Tyre | 10" Tyres with Tractor Profile |
| Suitable for solid ground | Yes |
| Suitable for muddy and sandy terrains | Yes |
| Lifting hook | Yes |
| Can be moved by hand | Yes |
| Can be towed with a vehicle | Yes |

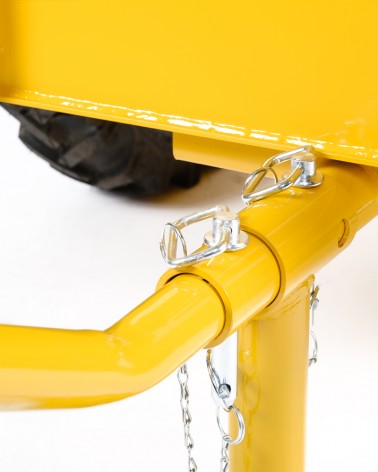

| Towing bar with hook | Yes |
| Document box prepared for lock | Yes |
| Tool box prepared for lock | No |
| Tank on engine | No |
| Tank integrated in frame | Yes |
| Tank Capacity | 35 l |
Pump |
|
|---|---|
| Type of Pump | Self-priming centrifugal pump |
| Pump manufacturer | Victor Pumps |
| Suction port | 4" |
| Discharge port | 4" |
| Type of ports | Female Thread BSP |
| Type of self-priming | Wet-prime |
| Vaccum pump | No |
| Inspection cover for the impeller | Yes |
| Filling port | Yes |
| Drain Port | Yes |
| Plug for Vacumeter | Option |
| Plug for the Manometer | Option |
| Material of casing | Cast iron |
| Material of impeller | Ductile Cast-iron |
| Material of wear plate | Steel |
| Material of shaft | Stainless steel AISI420 |
| Material of non-return valve | NBR (Nitrile) |
| Shaft sealing | WWN tungsten carbide tungsten carbide NBR |
Drive |
|
|---|---|
| Type of drive unit | Diesel |
| Drive Manufacturer | Hatz |
| Exhaust gas regulation | Stage V |
| Electric start | Yes |
| No. of Cylinder | 1 |
| Strokes | 4-stroke |
| Maximal Rotation | 3000 rpm |
| Cooling | Air cooled |

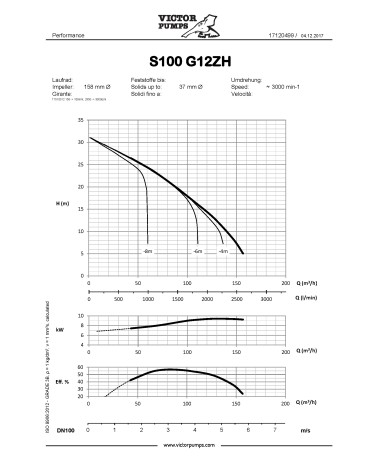

Performance data |
|
|---|---|
| Typical application | waste water with solids in suspension, non-corrosive |
| Product temperature | max. 60 °C |
| Ambient temperature | max. 40 °C |
| Density | up to 1, 3 kg/dm³, for higher values you need an oversized motor |
| Viscosity | up to 5 mm²s (cSt), for higher values you need an oversized motor |
| Max vacuum with water | max 8 m (9, 5 m for 10 min) |
| Max vacuum with air | max 8, 5 m |
Additional Features |
|
|---|---|
| Battery Size | 80 Ah |
| Battery-cover | Yes |

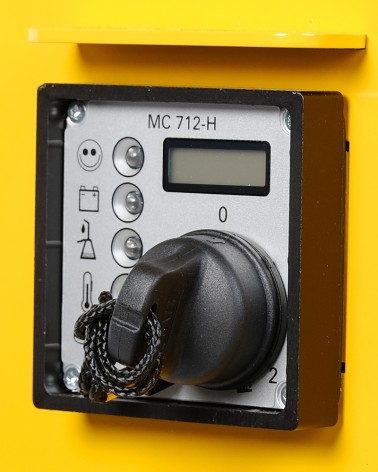

| Switchboard | Yes |
| Indicators on the panel | Oil Pressure, Power-Battery Supply |
| Paint | RAL1006 maize yellow |

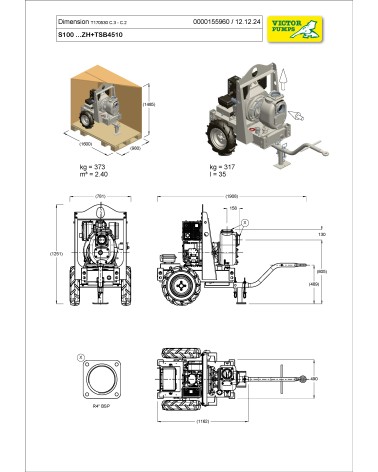

| External Dimensions (L x W x H) | see dimensions |
| Net Weight | see dimensions |
Spare parts
There are no spare parts associated with this productAccessories
There are no accessories associated with this productRelated Products ( 0 other products in the same category )
Subject to errors and changes
