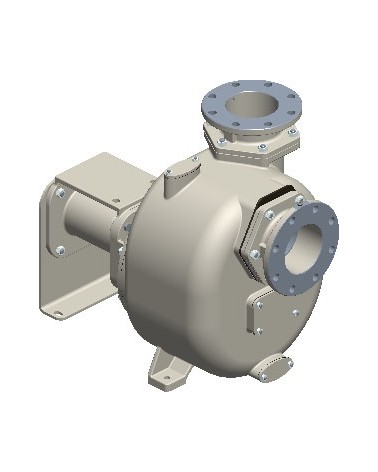

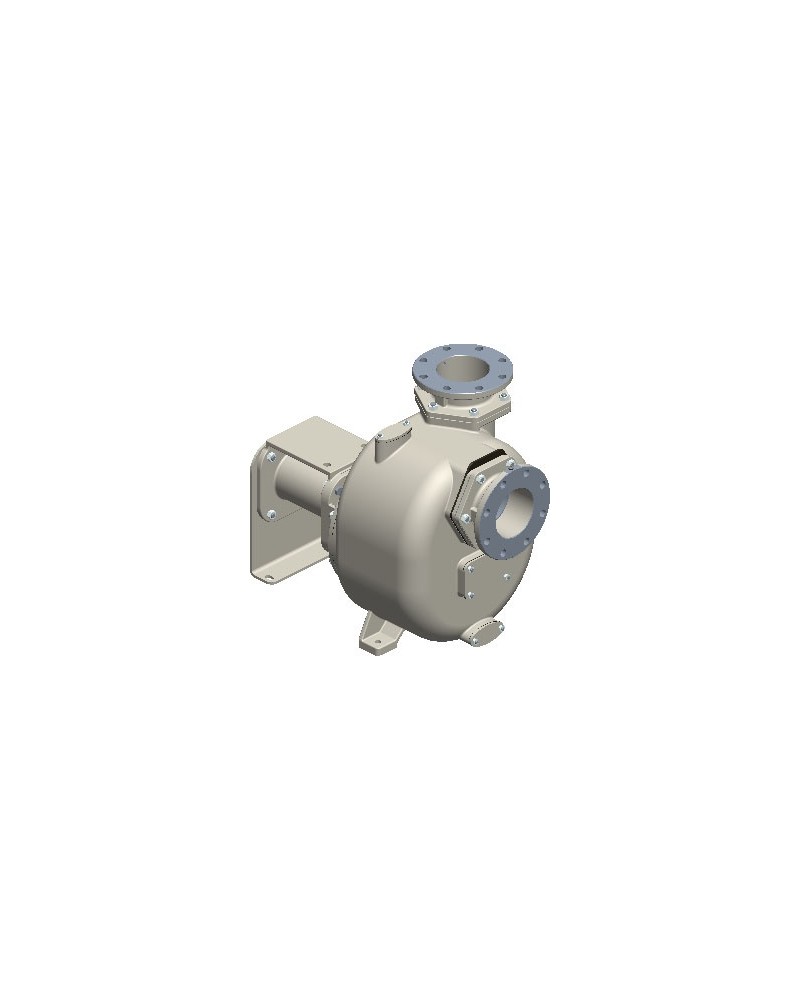

6” Self-priming centrifugal pump in cast iron with mechanical seal, grease-lubricated, non return valve, pedestal and bare shaft.
+F flange coupling according DIN. PN16
S180+50 G33B+F
35519.02
6” Self-priming centrifugal pump in cast iron with mechanical seal, grease-lubricated, non return valve, pedestal and bare shaft.
+F flange coupling according DIN. PN16
35519.02

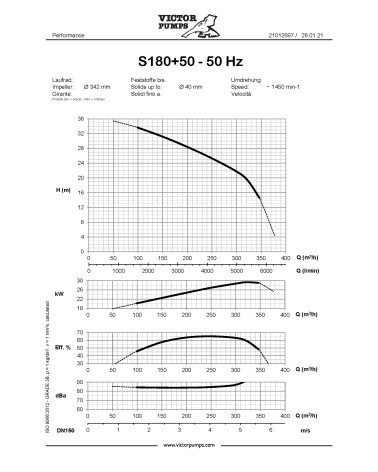

Specifications
Main Features |
|
|---|---|
| Pump series | S180+50 |
| Pump Flow Rate | max 340 m³/h (5667 l/min) |
| Pump head with 50 Hz grid frequency | max 20 m |
| Max. Solids Handling | 54 mm |
| Self-priming | ★★★★★ |
| Heavy-duty | ★★★☆☆ |
| Construction | Bare shaft |
Pump |
|
|---|---|
| Type of Pump | Self-priming centrifugal pump |
| Suction port | DN150 |
| Discharge port | DN150 |
| Type of ports | DIN PN16 flange (compatible), ANSI 150lb flange |
| Inspection cover for the impeller | Yes |
| Filling port | Yes |
| Drain Port | Yes |
| Plug for Vacumeter | Option |
| Plug for the Manometer | Option |
| Material of casing | Cast iron |
| Material of impeller | Ductile Cast-iron |
| Material of wear plate | Steel |
| Material of shaft | Stainless steel AISI420 |
| Material of non-return valve | NBR (Nitrile) |
| Shaft sealing | YYV Mechanical Seal with Grease Lubrication in SiC/SiC/FKM(Viton®) on Stainless Steel Sleeve AISI316 |
Drive |
|
|---|---|
| Type of drive unit | Without drive |
| Rated Power | 30 kW |
| Maximal Rotation | 1450 rpm (50 Hz) |
Performance data |
|
|---|---|
| Typical application | waste water with solids in suspension, non-corrosive |
| Product temperature | max. 90 °C |
| Ambient temperature | max. 40 °C |
| Density | up to 1, 1 kg/dm³, for higher values you need an oversized motor |
| Viscosity | up to 20 mm²s (cSt), for higher values you need an oversized motor |
| Max vacuum with water | max 8 m (9, 5 m for 10 min) |
| Max vacuum with air | max 6 m |
Additional Features |
|
|---|---|
| Setup position | Horizontal |
| Coupling | Without |
| Arrangement | None |
| Paint | RAL6011 Reseda green |

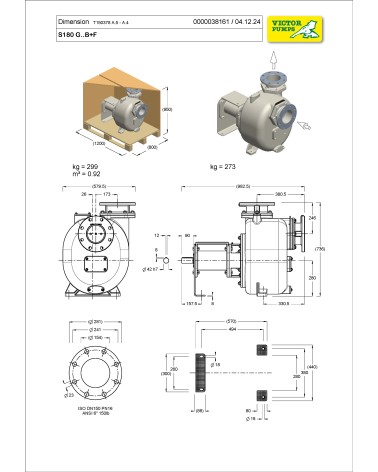

| External Dimensions (L x W x H) | see dimensions |
| Net Weight | see dimensions |
