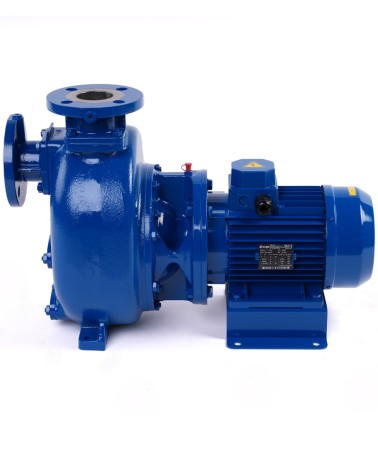

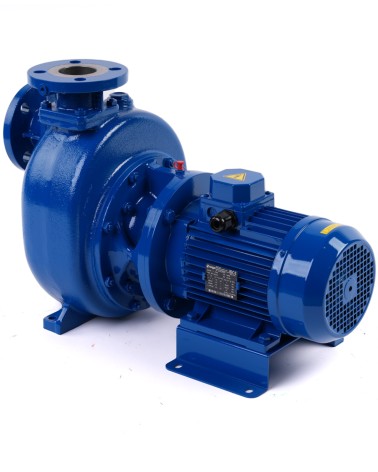

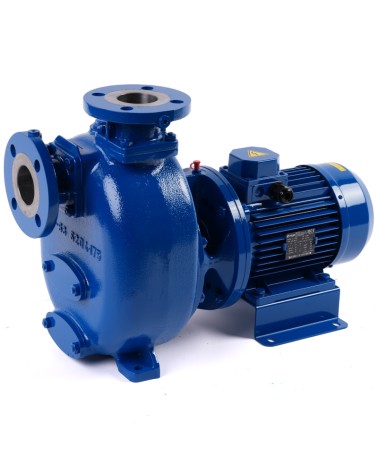

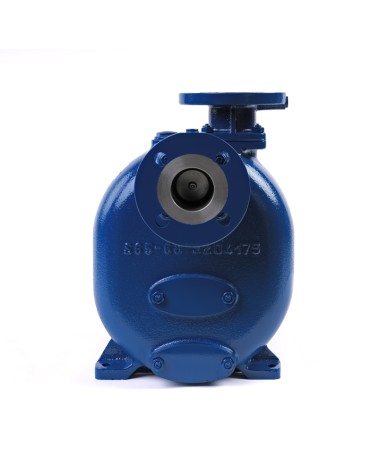

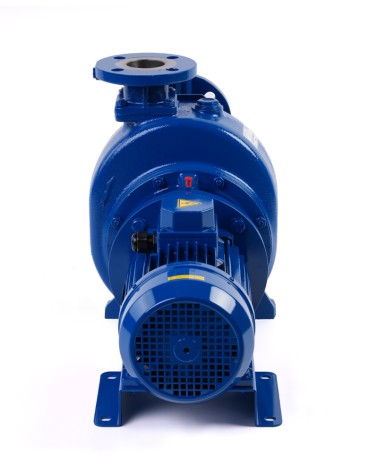

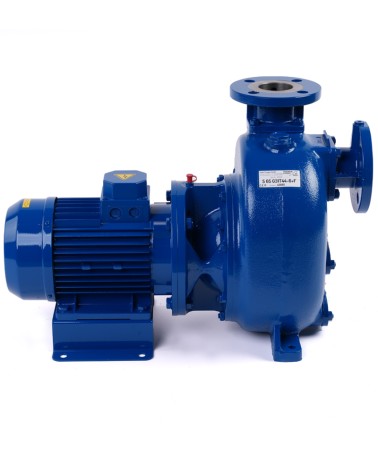

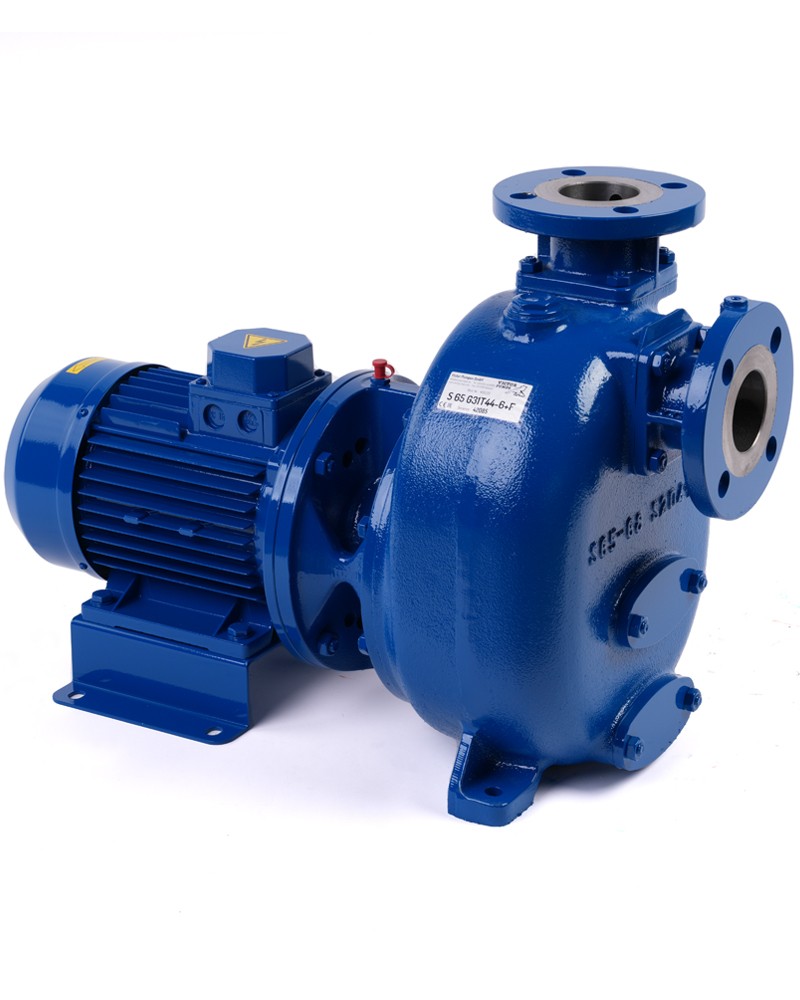

S 65 G31T44-6+F

31000194

#90220



Download PDF Download
31000194

Specifications

Main Features

Pump series S 65
Pump Flow Rate max 40 m³/h (655 l/min)
Pump head with 50 Hz grid frequency max 13 m
Pump head with 60 Hz grid frequency max 25 m
Max. Solids Handling 25 mm
Self-priming ★★☆☆☆
Heavy-duty ★★★★★
Construction Close Coupled

Pump
Type of Pump Self-priming centrifugal pump
Pump manufacturer Victor Pumps
Suction port DN50
Discharge port DN50
Type of ports DIN PN16 flange (compatible), ANSI 150lb flange
Type of self-priming Wet-prime
Inspection cover for the impeller Yes
Filling port Yes
Drain Port Yes
Plug for Vacumeter Yes
Plug for the Manometer Yes
Material of casing Cast iron
Material of impeller Ductile Cast-iron
Material of wear plate Steel
Material of shaft Stainless steel AISI420
Material of non-return valve NBR (Nitrile)
Shaft sealing YCV Mechanical Seal with Grease Lubrication in SiC/SiO₂/FKM (Viton®) on Stainless Steel Sleeve

Drive

Type of drive unit Three-Phase Electric Motor
Drive Manufacturer Victor Pumps
Efficiency class IE1, S6-75%
Rated Power 4 kW
Maximal Rotation 1450 rpm (50 Hz), 1750 rpm (60 Hz)
Rated voltage 400 V ±10% @ 50 Hz, 460 V ±10% @ 60 Hz
Protection 12 Amp (380-480 V)
Cooling method IC411- TEFC
Protection degree IP55
Insulation class F

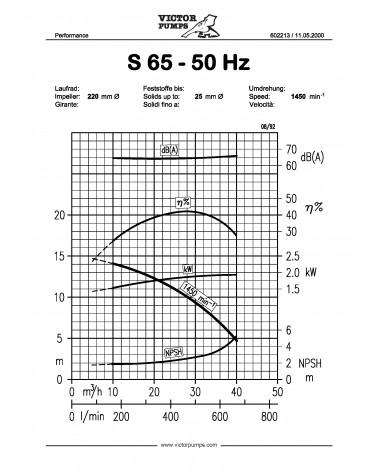

Performance data
Typical application waste water with solids in suspension, non-corrosive
Product temperature max. 60 °C
Ambient temperature max. 40 °C
Density up to 1, 1 kg/dm³, for higher values you need an oversized motor
Viscosity up to 5 mm²s (cSt), for higher values you need an oversized motor
Max vacuum with water max 8 m (9, 5 m for 10 min)
Max vacuum with air max 6 m

Additional Features

Setup position Horizontal
Coupling One shaft solution without any coupling

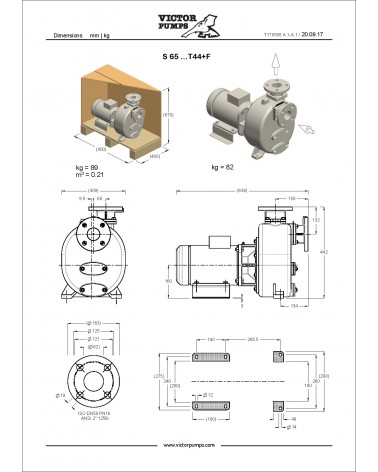

External Dimensions (L x W x H) see dimensions
Net Weight see dimensions

Spare parts

Accessories

There are no accessories associated with this product
Related Products ( 0 other products in the same category )
Subject to errors and changes
